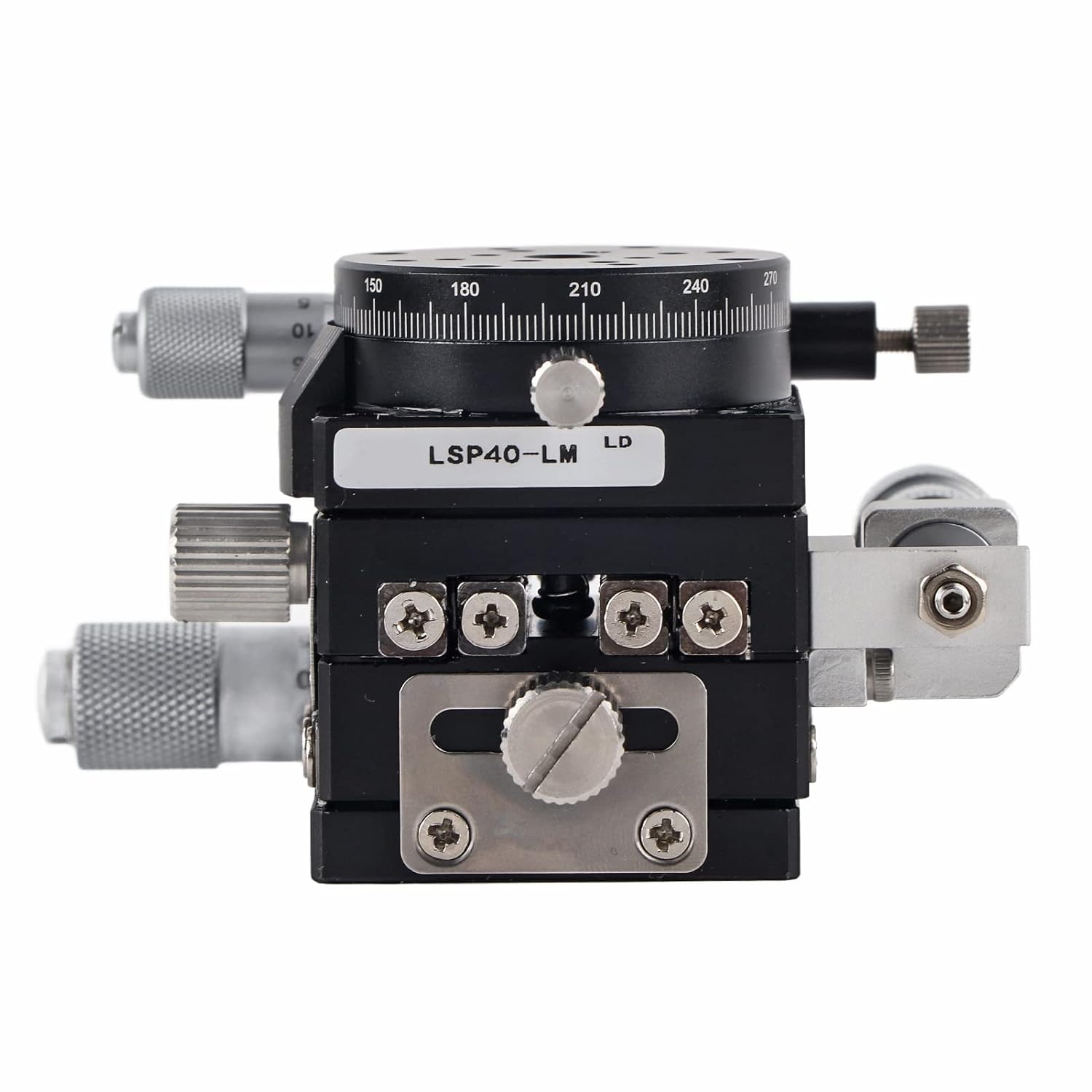

XYR 3 Axis Manual Linear Stage 40x40mm LSP40-LM Trimming Platform Manual Linear Stage Tuning Sliding Table φ40mm

Feature: 1. Suitable for production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on. 2. XYR 3-Axes can be adjusted. 3. plated locking screw, plated fine adjustment knob. 4. Carbide side head, tighter lock, no rust in complex environment, more durable, resistant. 5. It adopts high-strength bearing steel cross guide rail, which has strong bearing capacity, stable work and better wear resistance. 6. The surface of the guide rail is electroplated and can be used in complex environments, resistant and rust resistant. 7. The micrometer drive mode can realize the R-Axes: coarse adjustment 360 degrees, fine rotation adjustment ±5° Specification: Item Type: Trimming Platform Model: LS40-LM (XY integrated + R Axes) Can be Realized: Coarse adjustment 360 degrees, rotation precision adjustment ±5° Material: Aluminum alloy (black anodized surface) Table Diameter: Approx. 40mm / 1.6in Moving Rail: V-rail Drive Mode: Micrometer Direction of Movement: XYR Axes XY Axes Travel: ±6.5mm Load: 29.4N (3kgf) Accuracy: 0.01mm Minimum Scale: 0.01mm Parallelism: 0.02mm Scope of Application: Suitable for production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on. Package List: 1 x Trimming Platform

• Suitable for production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement and so on.
• XYR 3-Axes can be adjusted.
• plated locking screw, plated fine adjustment knob.
• Carbide side head, tighter lock, no rust in complex environment, more durable, resistant.
• It adopts high-strength bearing steel cross guide rail, which has strong bearing capacity, stable work and better wear resistance.
