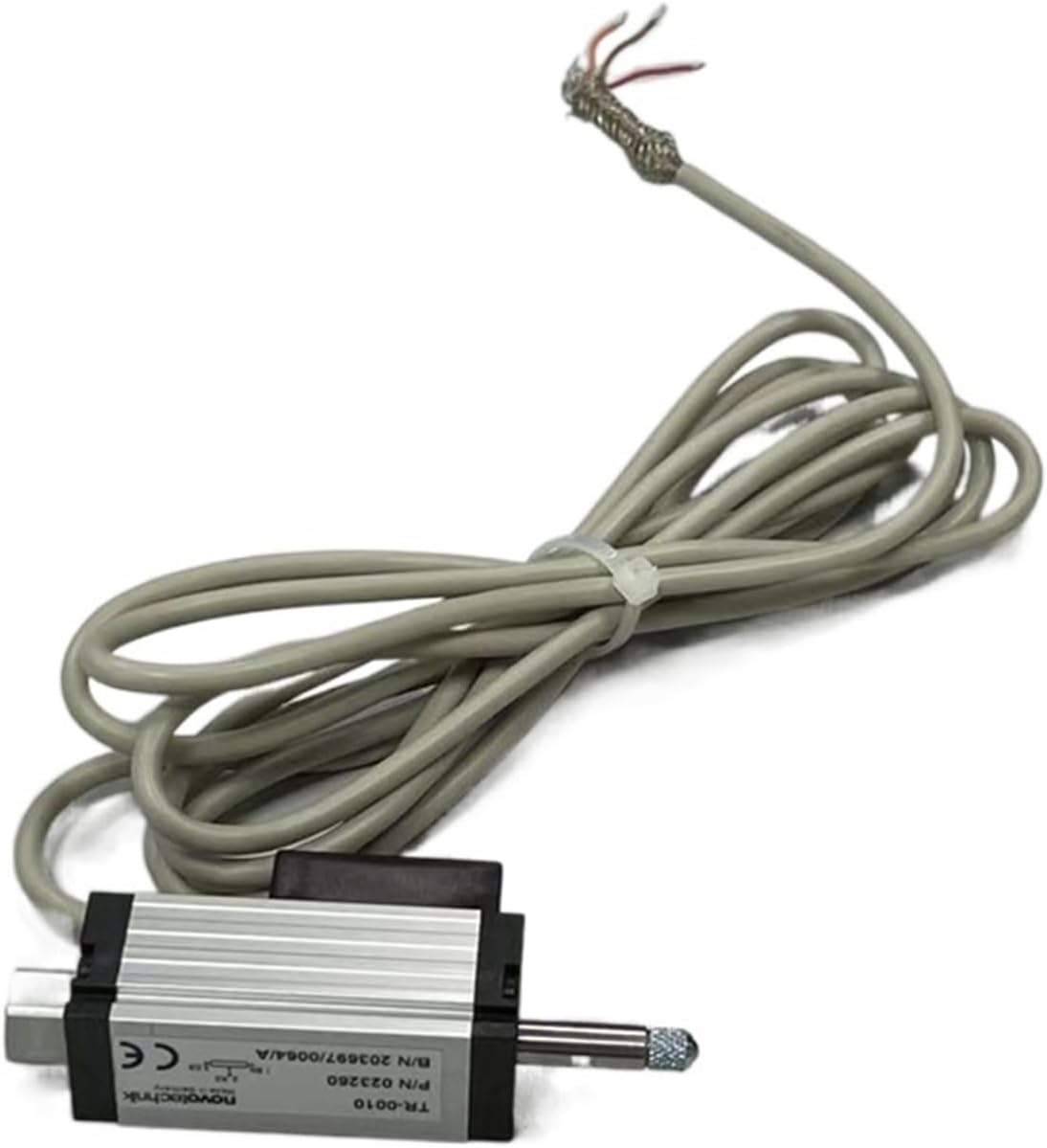

TR-0010 TR/TRS Resistance Ruler Linear Displacement Sensor

SensorLinearity : 0.01Linearity range : 0.01Output type : AnalogueOperating force : -Actuator Type : VoltageResistance Value : 1000Resistance Tolerance : 20Supply Voltage : 24Minimum Packaging : 1Application Areas : MachinerySensor type : Linear displacement sensorLinearity : 0.01 (%)Linearity range : 0.01 (mm)Output type : AnalogueOperating force : -Actuator Type : VoltageResistance Value : 1000 (Ohms)Resistance Tolerance : 20 (%)Supply Voltage : 24 (V)Minimum number of packages : 1Application : MachineryContact : 186 6685 4849This product is widely used in printing machines spraying machine tools robots automation equipment and other applications where displacement measurement is required. TR/TRS Series Linear Displacement SensorsPotentiometer principle working range up to 100 mm.With reset springDisplacement transducers utilise conductive plastics and brushes for the direct measurement of position or the contour of an object without any form of solid mechanical coupling. A distinctive and important feature of these sensor assemblies is their robust and engineering-tested construction. Of particular importance are the flexible bearings at the ends of the sensors that provide effective cushioning when lateral stresses are encountered such as in cam applications. The stop nut at the rear of the tie rod is designed for easy connection to electromagnetic and pneumatic-hydraulic actuators.Features:- Long service life up to 100 x 106 movements depending on the application.- Excellent linearity up to 0.075%.- Output cable or plug connections available- Universal standard contacts- Flexible bearings on both ends- Excellent resistance to shock and vibrationTR/TRS Series Sensors Linear Displacement Sensors with operating ranges up to 100 mm with reset spring; Displacement sensors utilise conductive plasti

• Sensor
• Angle sensor adopts the magnetic induction principle (internal non-contact type) to measure the Angle.
• It has the characteristics of no contact long life high resolution high frequency noise low temperature drift excellent linearity waterproof dustproof vibration resistance anti-interference and so on.
• Widely used in water oil vibration impact and other harsh industrial environment.
• osition measurement is an ideal product to replace optical encoder rotary transformer conductive plastic potentiometer
• If you have any questions please feel free to contact us. We will do our best to solve it for you.
