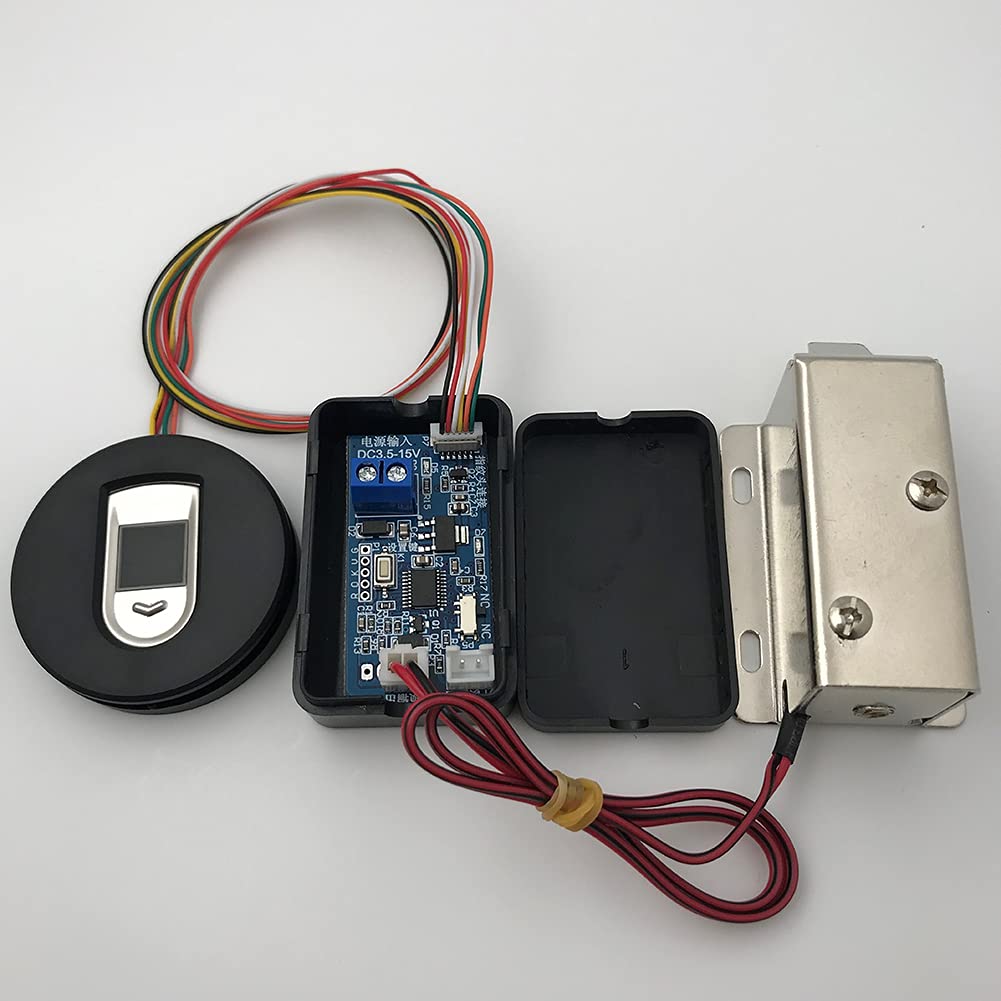

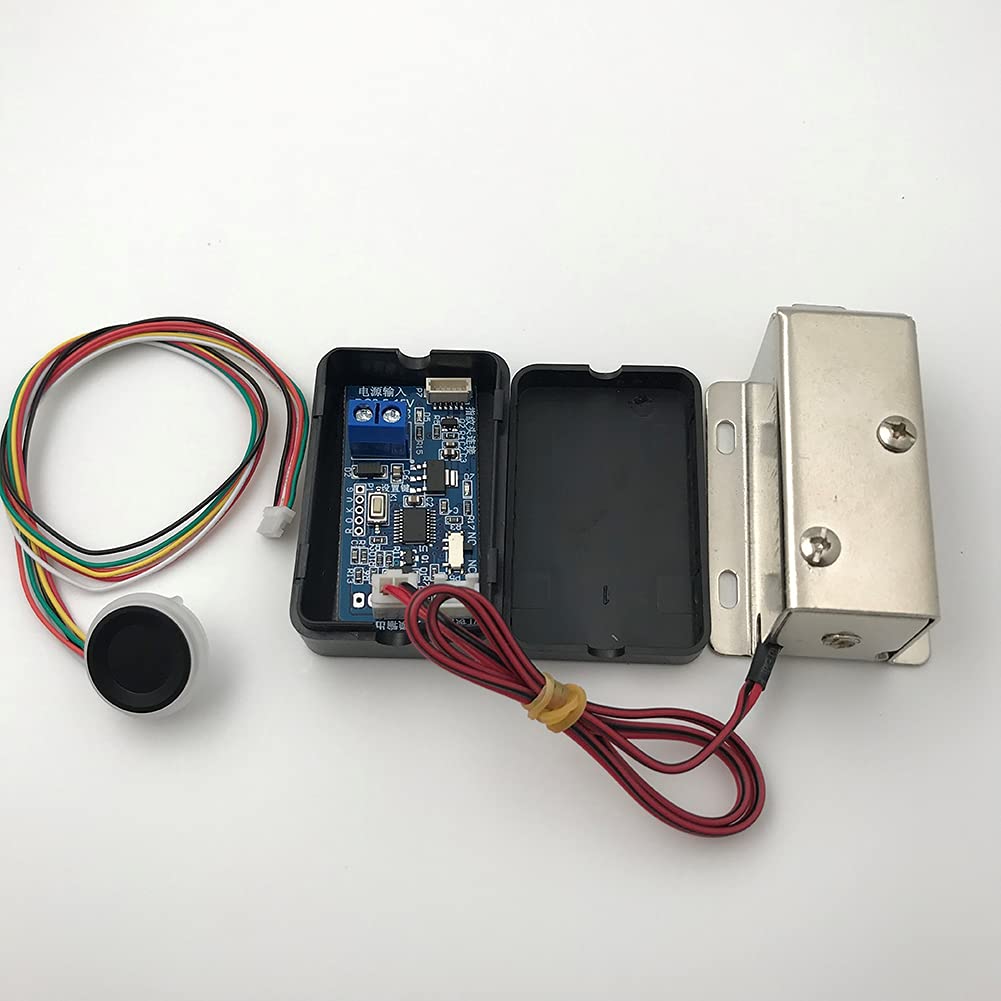

Taidacent Low-Power Electromagnetic Lock Fingerprint Access Control Mod Identification Door Switch Fingerprint Ignition Switch (Control Board with Shell, Circular Fingerprint)

Note 1. This control board does not have a relay output, so the output of this control board is a voltage signal, not a switch signal. It is more suitable for controlling loads such as electromagnetic locks, safe locks, and locker locks. This control board does not have a motor drive chip, nor can it be used to control the forward and reverse rotation of the motor. 2. The maximum output current is 5A, 10uA ultra-low standby power consumption. Do not use over-range! Basic operation 1. Press the button to restore factory settings: When the circuit board is powered on, keep pressing the "setting key" on the circuit board for more than 10 seconds, you can see that the red indicator light on the circuit board lights up and the fingerprint module starts to light up in white. At this time, release the "setting key" and fingerprint If the green light is always on for 1 second, it means the deletion is successful; if the fingerprint is always on for 1 second, it means the deletion has failed. After restoring the factory state, the system will clear all fingerprint libraries. At this time, the system is in demonstration mode, and any fingerprint can control the relay to open. 2. Recording the fingerprint of the administrator: [Max number of administrators is 10] When the system is in the factory state, press any finger on the fingerprint window and hold it for about 5S without letting go. The yellow light of the fingerprint will light up. After the finger is removed, the yellow light will flash, and the operation of adding the administrator fingerprint will be entered. Start pressing the finger, the light blue light will turn on when the finger is pressed, the yellow light will flash when the finger is lifted, press the finger 4 to 6 times continuously, the green light will be on for about 3S, the new fingerprint entry is successful;

• 1. Control board wide voltage input, DC3.5V-DC15V are compatible (+ is positive,-is negative); control board size is 48*25*14mm in length, width and height.The input voltage is equal to the output voltage of the control lock. If you want the control lock to output 12V, the input voltage also needs 12V. If you want the control lock to output 5V, the input voltage also needs 5V.
• 2. The fingerprint head is equipped with a fingerprint module with 50 colorful lights. The recorded fingerprint information and the set jog time, relay mode, etc. will not be lost after power off.
• 3. Ultra-low power consumption standby current 10ua, suitable for battery power supply, standby time is more than 2 years. Suitable for DIY users to modify, used in access control, cabinet lock control, industrial control and other occasions.
• 4. You can delete all ordinary user fingerprints or ordinary user fingerprints with a designated number; you can also restore the factory settings of fingerprints with one key.
• 5. You can freely choose the relay self-locking mode, jog mode, and ignition mode. In jog mode, the time of relay control can be adjusted freely.
