SZW26/LW26-20 20A 660V 1-0-2 One Phase Four Terminals 64X64 48X48 Mm Panel Transfer Rotary Universal Changeover Cam Switch(D101.1 1 0 2 64X64mm)
4.7 (16 items)
Limited Time Sale$43.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215354847 | Release Date | 2026/04/12 | List Price | $28.79 | Model Number | 215354847 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

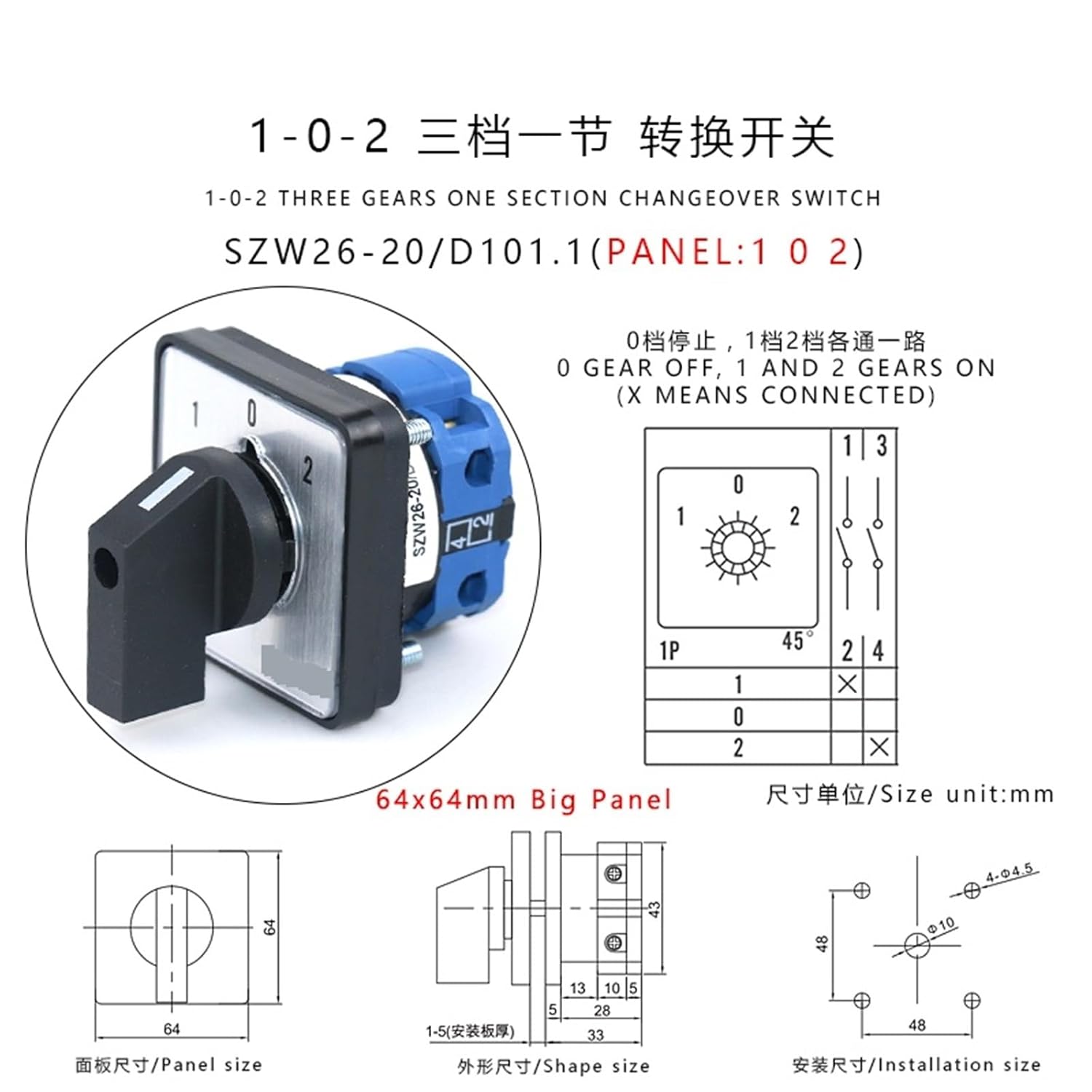

SwitcheSpecification:Lacthing Selector ; Ui: 660V, Ith: 20A ; 1 Phase 4 Terminals3 Position (1-0-2)3.Rating :AC-15: Ue 440V Ie 20ADC-13: Ue 240V Ie 1A4.Panel size:48 x 48 mm,Install Size:36 x 36mmPanel size:64 x 64 mm,Install Size:48 x 48mm5.which terminal will be connected in different position , please read the wiring diagram as a reference.Position 1 : 1-2Position 0 : All terminal disconnectedPosition 2 : 3-4 ==========High-concerned chemical : NoneCurrent : 20AMaterial : PlasticSwitch Type : Universal Switc Model Number : SZW26-20/D101.1 Item Type : SWITCHES Origin : Mainland ChinaCertification : CE,CCCRated insulation voltage(Ui) : 660VConventional heating current(Ith) : 20AUse category 1 : AC-15Rated working voltage(Ue) 1 : 440VRated working current(Ie) 1 : 20AUse category 2 : DC-13Rated working voltage(Ue) 2 : 240VRated working current(Ie) 2 : 1A
- Switche
| Color | One Color |
|---|---|
| Terminal | Blade |
| Brand Name | PYNSVNVM |
| Switch Type | Bipolar Transistor |
| Circuit Type | 1-way |
| Contact Type | Normally Closed |
| Manufacturer | PYNSVNVM |
| Material Type | Acrylonitrile Butadiene Styrene |
| Mounting Type | DIN Rail Mount |
| Connector Type | Clamp |
| Current Rating | 0.01 Amps |
| Operation Mode | OFF-NONE-ON |
| Item Dimensions | 3.98 x 0.04 x 0.08 inches |
| Number of Items | 1 |
| Contact Material | Alloy Steel |
| Operating Voltage | 1 Kilovolts |
| Specification Met | UL |
| Number of Positions | 1 |
| Lower Temperature Rating | 1 Degrees Celsius |
| Upper Temperature Rating | 1 Degrees Celsius |
| International Protection Rating | IP00 |
