SLAMTEC RPLiDAR S2L 18m TOF Laser Scanner lidar ranging Sensor IP65 Navigation Obstacle Avoidance Screen Interactive

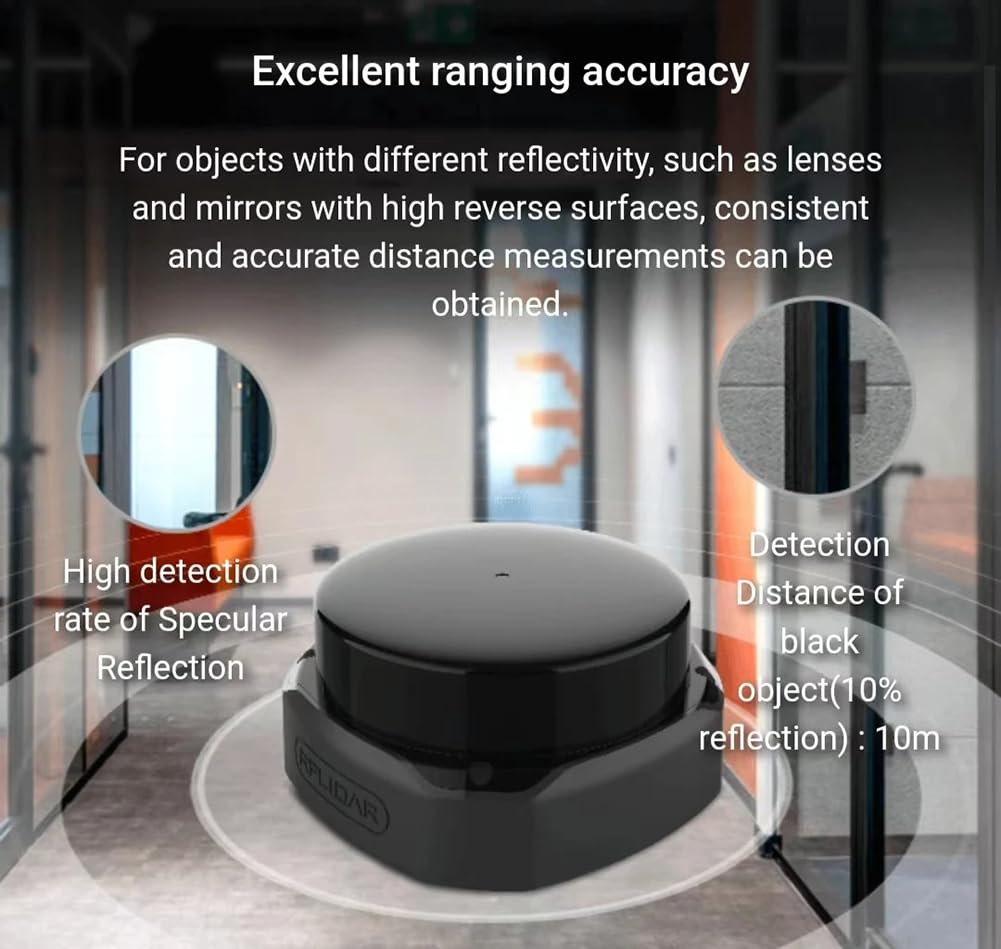

The RPLIDAR S2L is a next-generation low-cost 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 32000 samples of laser ranging per second with high rotation speed. Equipped with contactless power and signal transmission technology, it breaks the life limitation of traditional LIDAR systems to work stably for a long time. The RPLIDAR S2L is a 2D laser scanner, which can perform a 2D 360-degree scan within a 18-meter range and produce a 2D point cloud map of the space where it is located. The generated 2D point cloud data can be used in mapping, robot localization, robot navigation, and object/environment modeling. Compared with other RPLIDAR series, RPLIDAR S2L has a more stable performance when detecting objects in long distances, objects in white or black alternatively, and objects under direct sunlight, which is ideal for map building in the outdoor or indoor environment within a 18-meter ranging radius. Therefore, it can be widely applied in many consumer-oriented business scenarios. The typical scanning frequency of RPLIDAR S2L is 10Hz (600rpm). With the 10Hz scanning frequency, the sample rate is 32kHz, and the angular resolution is 0.12°.

• Slamtec S2L Ridar Workable in both Indoor and Outdoor,even in 80Klux strong sunlight interference.Achieve stable ranging and high-precision mapping.Output high-quality point cloud data to capture more environmental details.
• Range Radius: 18 meters; Power Supply: 5V; Scan Rate from 8-15Hz; ; Power Consumption> 2W; Communication Interface:URAT Serial (1M); The height of the scanning optical area of RPLIDAR S2L is only 18mm, which make it easy to be embedded. Weight:190g, Size: 77 x 77 x 38.85mm.
• Manual download：https://bucket-download.slamtec.com/b77bd08366e592678ca159ad775ececa43df058d/SLAMTEC_rplidar_datasheet_S2L_v2.0_en.pdf
