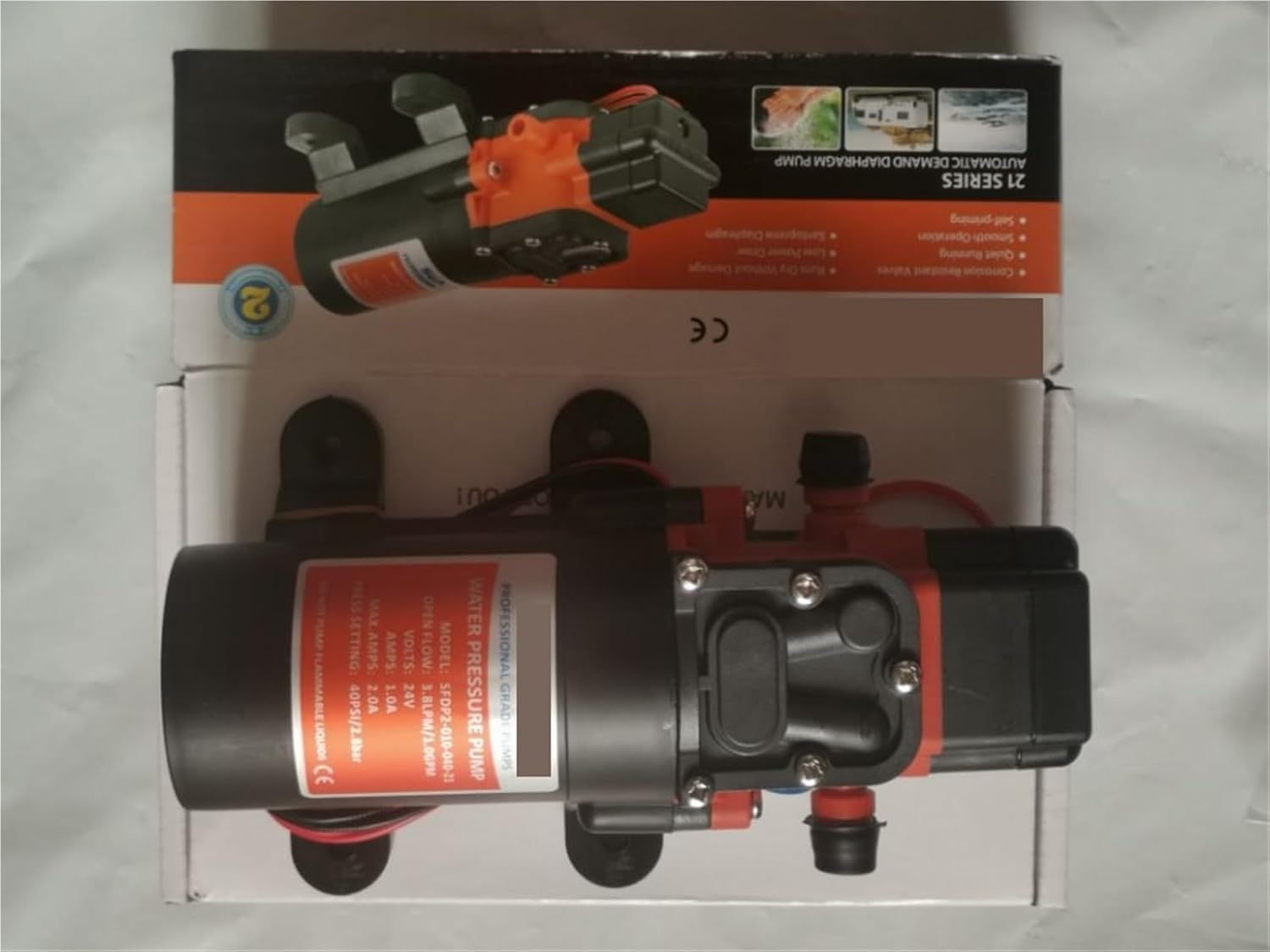

SFDP2-010-040-21 40 PSI 24V Diaphragm Pump for RV Yachting Boat(24V SFDP2-010-040-21)

Water Pressure PumpsDescription:35PSI 12V Water Pump Diaphragm Self Priming Pump Boat Accessories Showers Toilets Water Transfer Motor for RV CaravanThe21-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration and dispensing.The 21-series of diaphragm pumps are self-priming and can be run dry without harm.It provides up to 1.2 gallons per minute.Miniature multi outlet water pressure pump serves 1 or 2 3/8" (10 mm) outlets at any one time.Thiscompact automatic demand water system pump has a built-in pressure switch,which automatically starts and stops the pump when faucet is opened and closed.Package Includes:1x Water Pressure Diaphragm PumpPUMPType2 Chamber positive displacement diaphragmpump, self priming, capable of being run dryControl TypePressure switchMax Recommended Temperature60° C (140° F)Priming Capabilities4 feet (1.2 m) suction liftRe-start PressureShut-off Pressure35 PSI: 25 PSI ±5 PSI (±0.3 bar)Inlet/Outlet Ports3/8" (10mm) hose barbWeight1.3 lbs (0.6 kg)MOTORLeads18 AWG, 14" (35cm) long with 2-Pin connector/LeadsDuty CycleIntermittentMax.Amp Draw4.0 AFuse6.0 ASTANDARD PUMP CONFIGURATIONSModelVoltageOpen Flow(GPM/LPM)Control TypeMax DrawShut-off Pressure(PSI/BAR)ValvesDiaphragmPortsWire ConnectionsSFDP1-012-035-2112V1.2 / 4.3Switch4.0A35 / 2.4EPDMSantoprene3/8" Barb2-Pin/LeadsPERFORMANCE1.2 GPMPRESSUREFLOWCURRENTPSIBARGPMLPMAMPS0 0 0.833.141.35 0.340.772.911.5100.690.742.801.5151.030.712.691.6201.380.692.6111.7251.720.662.501.9302.070.632.382.8352.410 0 0 HEAT RISE==========High-concerned chemical : NonePower : ElectricApplication : -Theory : OtherStructure : -Model Number : SFDP1-010-040-21Standard or Nonstandard : StandardPressure : Low PressureUsage : WaterPower (W) : Electric
