Murphy by Enovation Controls EL150K1-BC Liquid Level Swichgage (15700118)
4.2 (69 items)
Limited Time Sale$123.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211699034 | Release Date | 2026/04/04 | List Price | $82.00 | Model Number | 211699034 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

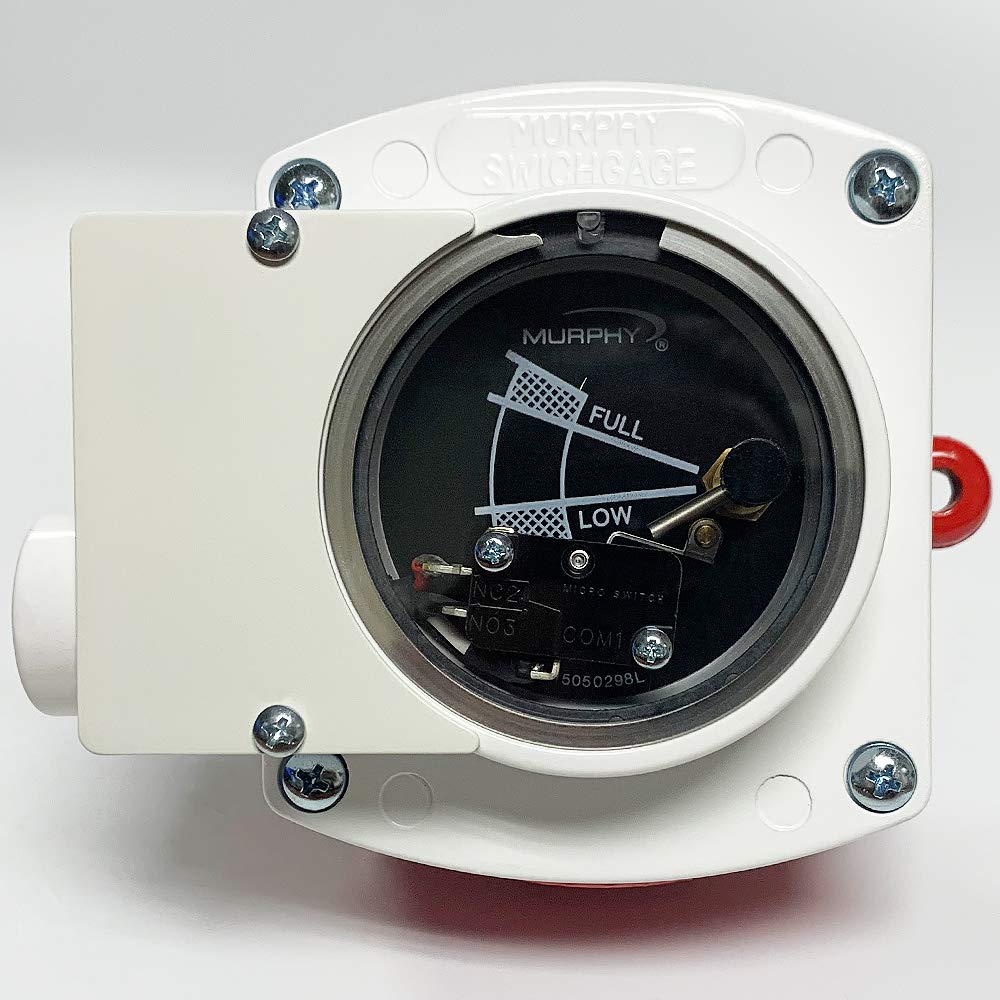

The EL150K1-BC Liquid Level Swichgage instrument is a combination liquid level gage and low-limit switch, with the wiring conduit located on the back of the instrument, rather than on the side ("BC" = back conduit). This unit includes (1) a chamber with pivotal float, (2) an indicating dial with pointer and (3) a low-level contact. When properly installed and maintained, the float operates the pointer which, in turn, both indicates level during normal operation and closes a switching circuit if the level falls to the low-limit set point. The primary use of the EL150K1-BC is for engine cooling systems, surge or expansion tanks, condenser radiator or vapor phase systems, pressurized or atmospheric systems. The Level Swichgage instrument can also be used to monitor lube oil, hydraulic fluid or diesel fuel reservoirs and activates alarms and/or shut down at a predetermined minimum level. These instruments are built for low pressure systems with a maximum of 25 psi (172 kPa) [1.72 bar].
- The EL150K1-BC Liquid Level Swichgage instrument is a combination liquid level gage and low-limit switch, with the wiring conduit located on the back of the instrument, rather than on the side. The primary use of the EL150K1-BC is for engine cooling systems, surge or expansion tanks, condenser radiator or vapor phase systems, pressurized or atmospheric systems. The Level Swichgage instrument can also be used to monitor lube oil, hydraulic fluid or diesel fuel reservoirs.
| Color | White |
|---|---|
| Model | EL150K1-BC |
| Terminal | Screw |
| Brand Name | Murphy by Enovation Controls |
| Unit Count | 1 Count |
| Switch Type | Float Switch, Limit Switch, Pressure Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | Murphy by Enovation Controls |
| Actuator Type | Float |
| Material Type | Copper |
| Mounting Type | Flush Mount |
| Connector Type | Screw Terminals |
| Control Method | Touch |
| Operation Mode | automatic |
| Number of Items | 1 |
| Contact Material | Copper |
| Specification Met | Ip54 |
| Number of Positions | 1 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
