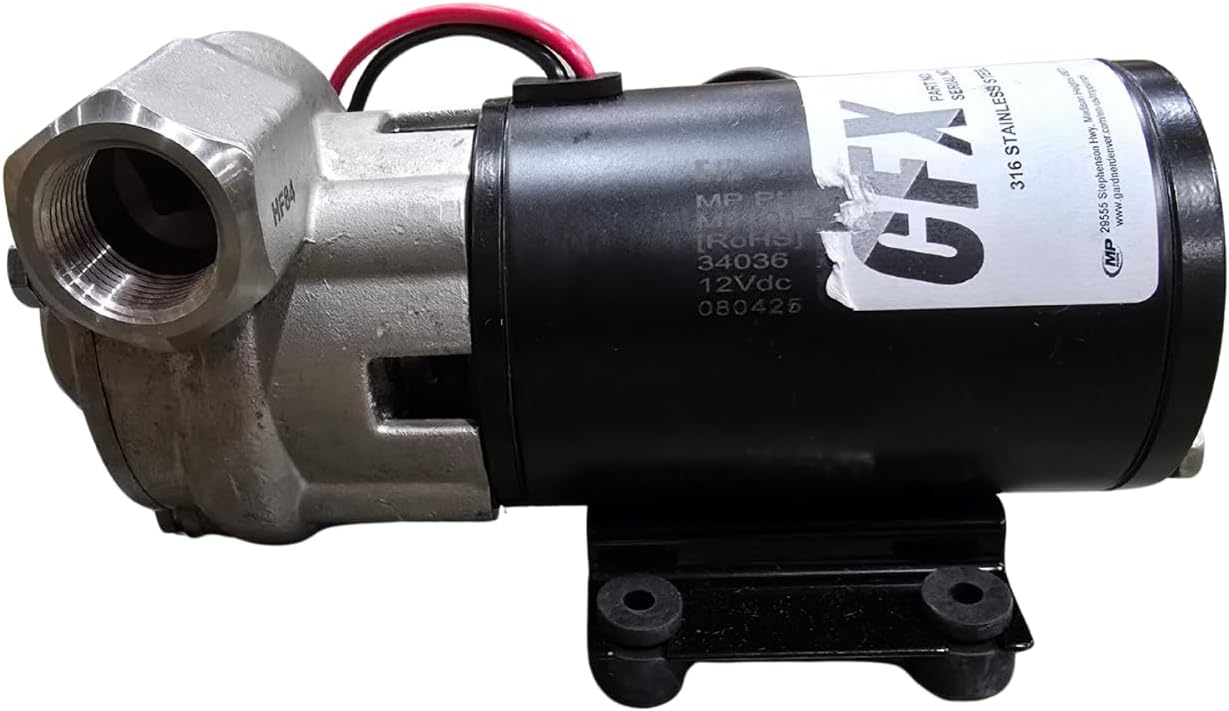

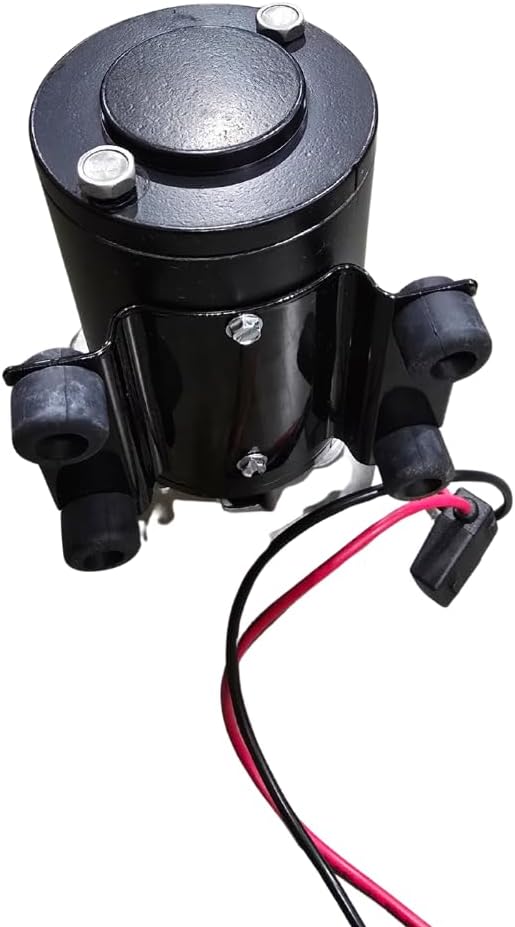

MP34141 CFX75 12V DC Centrifugal Pump | 316 Stainless Steel, Viton Seal | 3/4" NPT, 28 GPM | Heavy-Duty Marine, Agricultural Chemical & Industrial Fluid Transfer | Horizontal Discharge

MP Pumps MP34141 CFX75 Series Centrifugal Pump (12V DC)The MP Pumps MP34141 is a heavy-duty, high-performance centrifugal pump engineered specifically for the most demanding fluid transfer environments. Powered by a reliable 12V DC motor, this unit delivers a maximum flow rate of 28 GPM and a 32-foot head, making it the ultimate solution for off-grid marine systems, agricultural chemical spraying, and industrial OEM applications.Built for Harsh Environments & Chemicals: Unlike standard cast iron or plastic pumps, the CFX75 features rugged 316 stainless steel construction paired with a premium carbon/ceramic/Viton bellows shaft seal. This combination provides unmatched corrosion resistance, allowing you to safely transfer aggressive agricultural chemicals, liquid fertilizers, saltwater, and industrial solvents without fear of premature seal failure or internal rusting.Compact & Flexible Installation: Designed to fit into tight engine bays and custom equipment layouts, the pump features standard 3/4-inch NPT threaded ports in a compact horizontal configuration. For maximum versatility, the stainless steel pump housing can be unbolted and rotated in 90-degree increments, allowing you to route your plumbing and discharge hoses exactly where you need them.Technical Specifications: Model: CFX75 Series (PN: MP34141) Motor: 12V DC Max Flow: 28 GPM Max Head: 32 ft. Ports: 3/4" NPT (Horizontal Discharge) Material: 316 Stainless Steel Seal Material: Viton / Carbon / Ceramic

• HEAVY-DUTY FLUID TRANSFER: The MP34141 CFX75 centrifugal pump delivers a massive 28 GPM flow rate and 32 ft max head. Powered by a 12V DC motor, it is the ideal transfer pump for marine vessels, mobile agricultural tanks, and industrial equipment.
• AGGRESSIVE CHEMICAL HANDLING: Constructed entirely from premium 316 stainless steel, this pump offers superior, long-lasting corrosion resistance when pumping harsh liquid fertilizers, saltwater, and industrial solvents.
• LEAK-FREE VITON SEAL: Equipped with a specialized carbon/ceramic/Viton bellows shaft seal, ensuring maximum protection against chemical leaks, dry-run damage, and long-term wear in demanding daily applications.
• CUSTOM FLEXIBLE MOUNTING: Built for tight engine bays and custom OEM setups. The stainless steel pump housing can be easily rotated in 90-degree increments, allowing you to perfectly align the horizontal discharge port with your existing plumbing.
• STANDARD PLUMBING CONNECTIONS: Features universal 3/4" NPT threaded inlet and discharge ports, ensuring fast, secure, and leak-proof hose connections without the need for specialized proprietary fittings.
