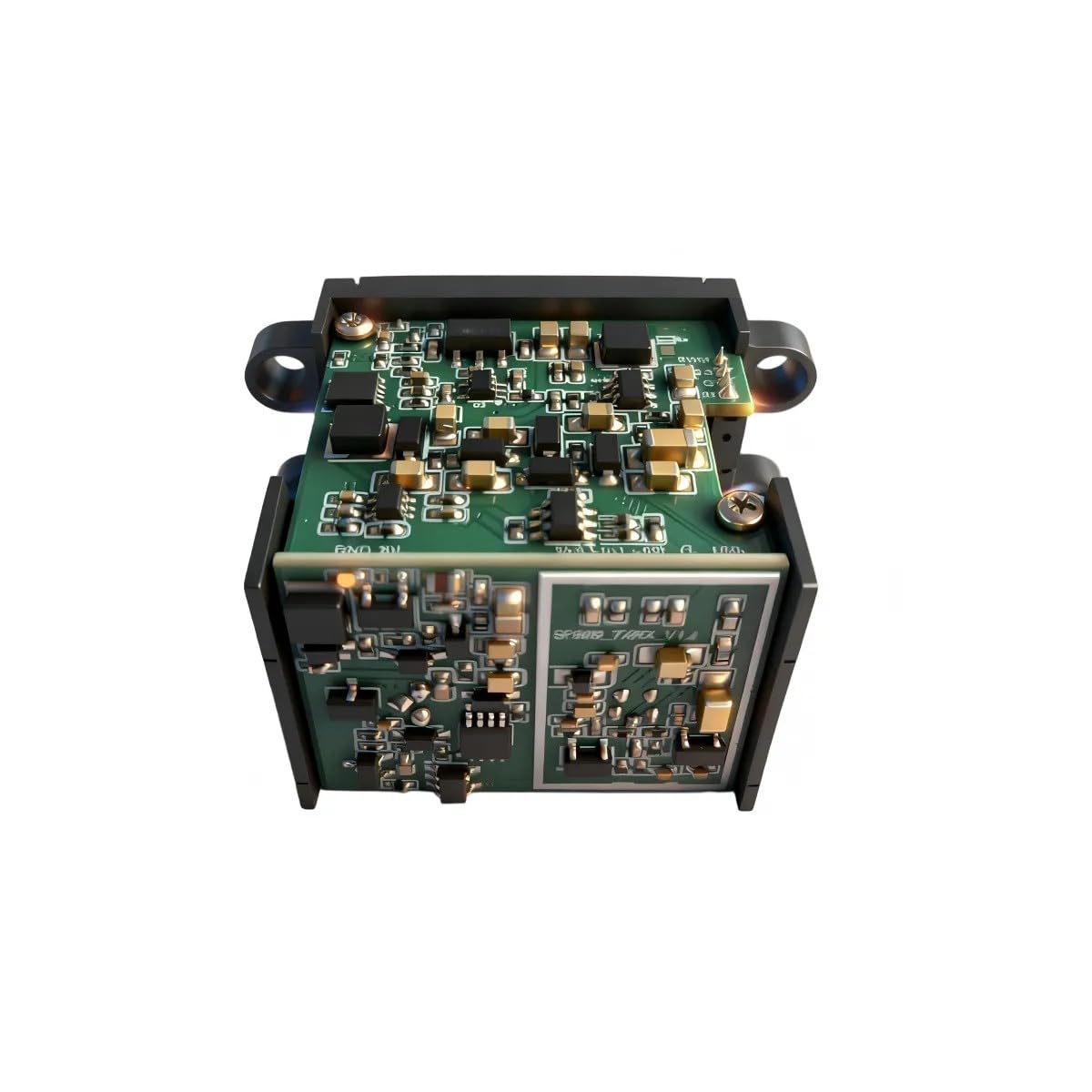

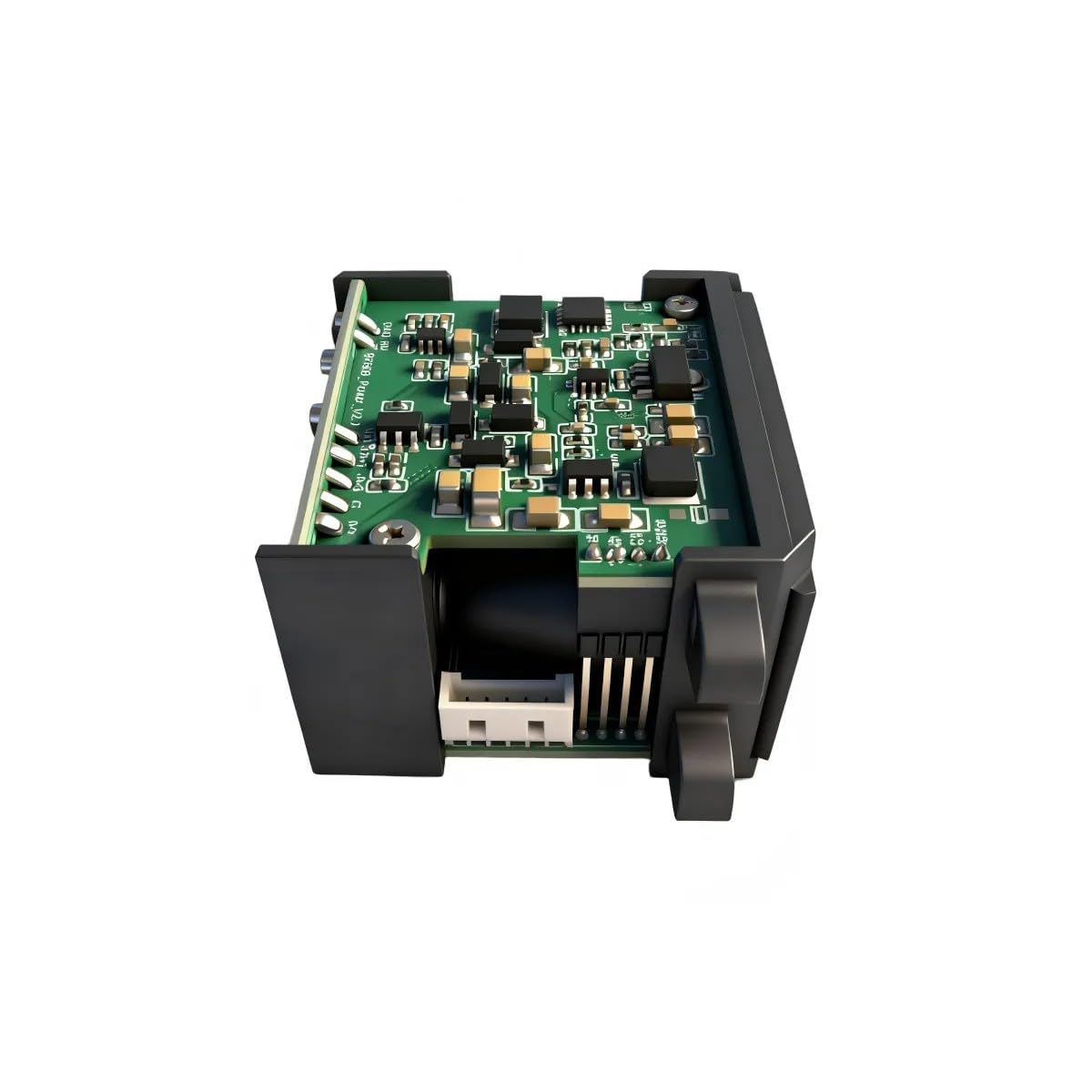

LRF50H LiDAR Distance Sensor, 50m Range, UART Interface, 905nm Wavelength Laser Ranging Module

The LRF50H LiDAR Distance Sensor is a high-precision measuring device that offers exceptional range and accuracy for various applications. With a measurement range of 1.97-164 feet (90% reflectivity) and 1.97-49.2 feet (10% reflectivity), this sensor delivers reliable distance measurements at frequencies between 20Hz to 10KHz. The sensor features a 905nm central wavelength and provides accuracy of ±1.97 inches at distances under 32.8 feet. Its compact dimensions of 1.5 x 0.79 x 1.18 inches and lightweight design at just 0.53-0.71 ounces make it ideal for integration into various systems. Operating with a supply voltage of 9-36VDC and UART communication interface, this sensor maintains stable performance across temperatures from -4°F to 140°F. The device includes a visible red light indicator (650nm) for easy targeting and comes with a 5-pin 1.25mm terminal with 19.7-inch tinned loose wire. Its low power consumption of 0.8W and compact form factor make it suitable for both industrial and commercial applications where precise distance measurement is crucial.

• ADVANCED MEASUREMENT: High-precision LiDAR sensor with 0.05m to 50m range using DTOF technology, offering ±5cm accuracy for reliable distance measurements
• VERSATILE PERFORMANCE: Features 20Hz-10KHz frequency range with 905nm wavelength and 4mrad field of view for precise object detection
• COMPACT DESIGN: Lightweight construction at just 15±2g with compact dimensions of 38 x 20 x 30mm, perfect for integration into various applications
• POWER EFFICIENT: Operates on 9-36VDC with low power consumption of 0.8W, featuring 24V@34mA average current draw
• WIDE OPERATING RANGE: Functions in temperatures from -4°F to 140°F, with automatic indicator adjustment and UART communication interface
