ICM288 Furnace Control Board low cost replace for 62-24084-82 Furnace Control Circuit Ignition Board PCB1384-6A SPCB-2
4.3 (58 items)
Limited Time Sale$59.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 210110865 | Release Date | 2026/04/02 | List Price | $40.00 | Model Number | 210110865 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

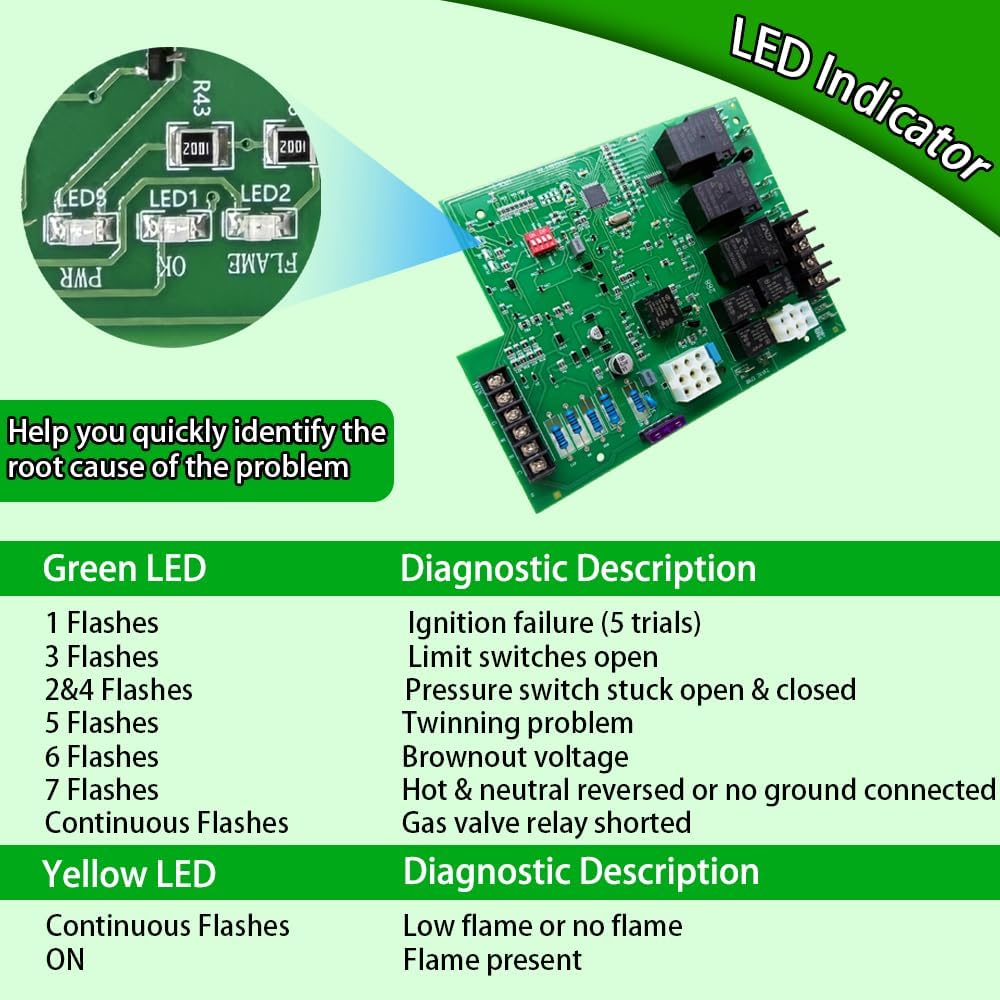

Installation Precautions⚠ 1.Before installation, please turn off the power supply and wear insulating gloves. 2.Before removing the coil, it is recommended to take photos and make labels, or install the wires one by one as you remove them (i.e., remove one wire and install the corresponding new one immediately). 3.If your new circuit board is equipped with screw terminals for thermostat wires, it is advisable to attach some crimping spade terminals to the static wires before starting the operation. 4.If your equipment is old and does not have a flame sensor, an additional accessory kit will be required.Installation Method ①Disconnect the power supply of the furnace. ②Remove the wires and label them carefully to ensure they can be reinstalled in the correct positions later. ③Replace the original circuit board and connect the correct coil (the coil specifications are the same, but the installation position may vary slightly). ④Ignition test (there are 3 constantly lit LED indicator lights on the circuit board, which display the status of power supply, ignition, and fault detection respectively).
- Perfect Replacement for 62-24084-82 Control Board
- Voltage Range: Line 98-132 VAC @ 60HZ Ignitor: 5A, 120 VAC Cool Blower: 10A, 2HP, 240 VAC Heat: 5A, 1/2 HP, 250 VAC Inducer Blower: 4A, 120 VAC Gas Valve: 1A, 24 VAC Humidifier Motor: 0.5A, 24 VAC Electronic Air Cleaner: 1A, 120 VAC
- The simple plug-and-play design allows you to quickly replace the aged control board.
- Attention! For your safety, please turn off the gas and power supply before installation!
- Note：Please take photos of the original connection positions of the cables before installation to avoid forgetting them during the process.
| Item Weight | 13.3 ounces |
|---|---|
| Part Number | GM2-CB-ICM288 |
| Manufacturer | GM2 |
| Item model number | GM2-CB-ICM288 |
| Batteries Required | No |
| Product Dimensions | 9.25 x 8.46 x 1.96 inches |
| Included Components | ICM288 control board |
| Warranty Description | 1 year |
