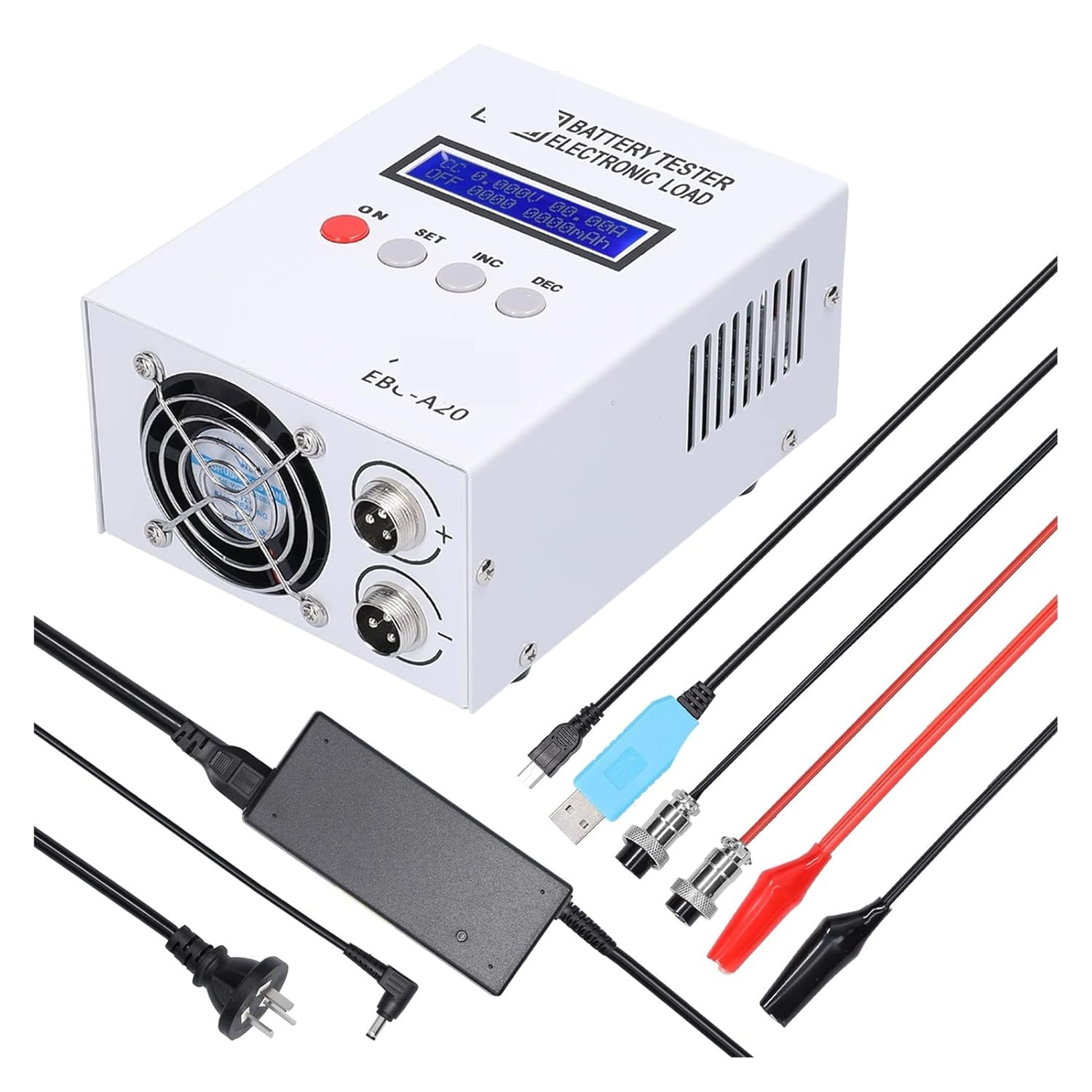

Electronic Load Tester Battery Tester 30V 20A 85W Lithium Lead-Acid Batteries Capacity Test Device 5A Recharge 20A Discharge Support PC Software Control Life Science Supplies

Features: Support separate recharge and discharge and recharge-discharge-recharge test.Support c-omputer online control, curve plotting, calibration benchmarking, firmware upgrade, cycle recharge/discharge etc..Two configurations optional, you can choose according to your demands.Specifications:Name: Battery TesterModel: EBC-A20Material: aluminum alloyConfiguration: simple configuration, standard configuration EU-Plug, standard configuration US-Plug(optional)Voltage setting: Discaharge: 0.00-30.00V, the minimum step 0.01V Recharge: 0.00-18.00V, the minimum step 0.01V Current setting: Discharge: 0.10-20.00A Minimum step 0.01A (automatic limit current when power is overrun)Recharge: 0.10-5.00A Minimum step 0.01A (the maximum current is less than the s-upply current when the voltage is above 10V )Mode setting: DSC-CC: discharge current is constant, it can be used to test the battery capacityDSC-CP discharge power is c onstant, used to simulate constant power equipmentCHG-C-V: constant current constant voltage recharging, applicable to test lithium and leadacid batteryAutomatic recharging and discharging: support "automatic recharging - discharge - recharging mode", it can be used to test battery capacityVoltage test: 0.000-4.500V (low pressure gear) accuracy to 0.003V, error ±0.5%

• Compact size, light weight and portable, wear resistant and can provide long sercive time.
• Large LCD display, you can see the voltage, current, capacity, time, power, energy and other test data clearly.
• 5A recharging, 20A discharge, the maximum power is 85W.
• 3 working modes settable design, you can set DSC-CC, DSC-CP, CHG-C-V according to your demands.
• Multifunctional, it can be used to test the battery capacity, simulate constant power equipment, and test lithium and leadacid battery.
