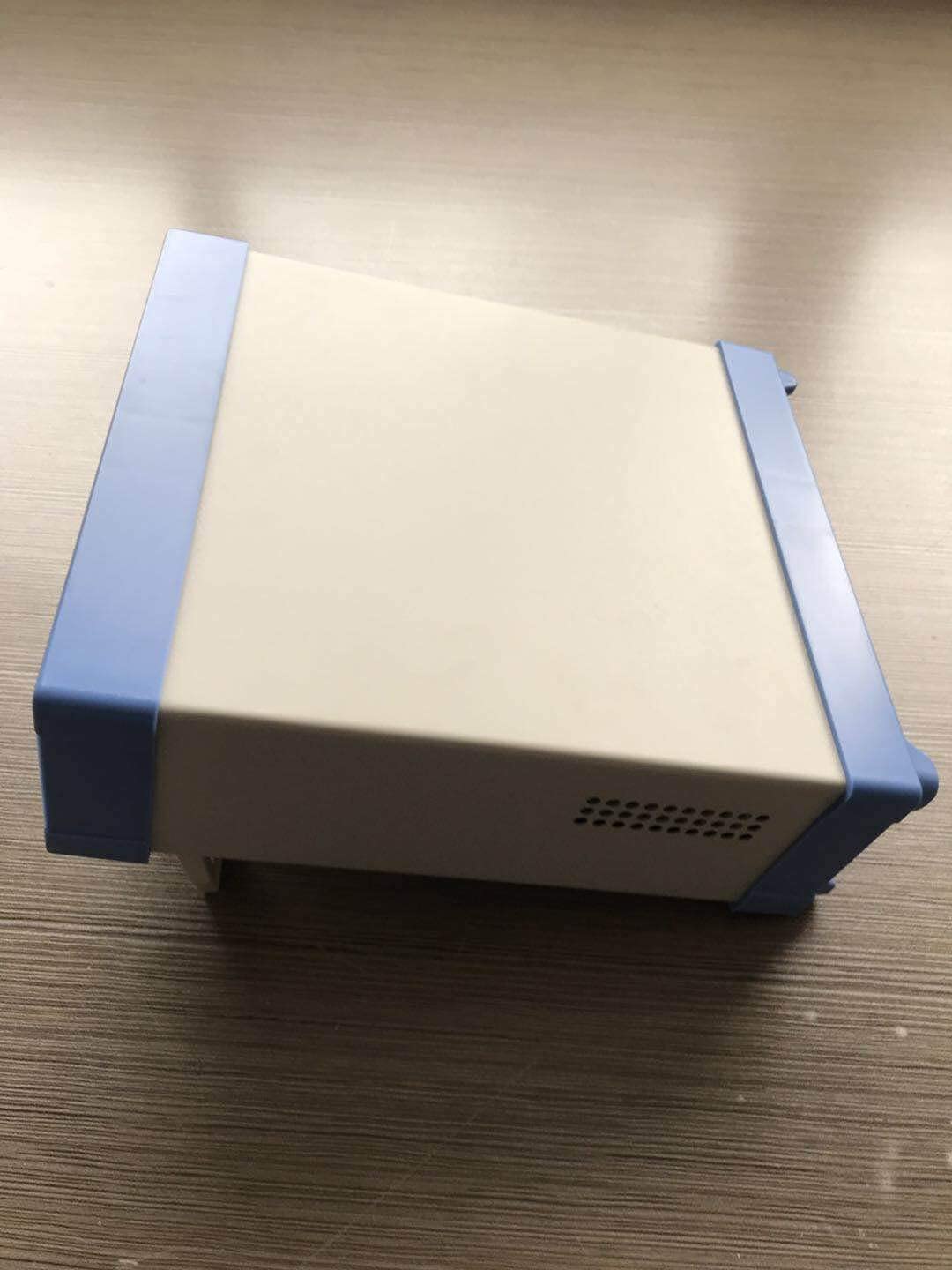

AT2511 Micro Ohm Meter 10micro ohm-200k ohm DC Low Resistance Meter

AT2511 is the upgrade version of AT511A, with 0.8 inches high brightness LED display, is a resistance meter with high-cost performance and small volume, which can measure 10μΩ - 200kΩ, max reading 5000 dgt. It is quite suitable for resistance measurement under low power conditions or factory inspection and product sorting based on its sorting function. Equipped with AUTO sorting function. SPECIFICATIONS AT2511AT511C ParameterDC resistance Accuracy0.2%0.3% Measurement Range10～200k0.1m～50.00k Signal SourceI - Max: <100mA RangeAutomatic and manual with 8 ranges Automatic and manual with 6 ranges SpeedSlow: 3 times/second; Fast: 10 times/second Result Displayshow Max Reading5000 AdjustmentShort-circuit Zero-Adjust for each range ComparatorLOW, IN, HIGH displayNone BeepGD, NG, OFF settingNone Test Lead 4 terminal shielding(2 check terminal and 2 driving terminal) and external shielding ground section Others LED display ApplicationsSmall diameter coil (headset coil); resistance of sensor; Resistance test of protective device; ordinary transformer, inductor, motor, deflection coil winding resistance; all kinds of contact resistance; welding point contact resistance; mental defect detection GENERAL FEATURES Power SupplyVoltage: 198V AC - 240V AC Frequency: 50Hz Power: Max 15VA Size225mm (Width)x83.5mm (Height)x199mm (Depth) 2kg ORDERING INFORMATION AccessoryATL503 Kelvin test clip
